Rolled Camp Kitchen Tutorial

I originally shared this tutorial on Today’s Creative Blog as part of Kim’s Summer Series.   After I shared it, Jess of The Sewing Rabbit pointed out it would be a pretty easy mod to make this to be a car organizer, too.  Such a great idea!  That girl is a genius!  This would also make a great gift for a tailgater, especially with football season coming up.  So…onto the Rolled Camp Kitchen (Maybe Car Organizer) Tutorial!
In my family, summer means camping.  For the past 13 years, we’ve had a rubber tote with all of our camp cooking supplies, but it is a mess.  Every time we go, I have to dig through the thing to find what I need. So, I decided to make an organizer for our camp kitchen basics.
rolled camp kitchen sew a straight line blog-6

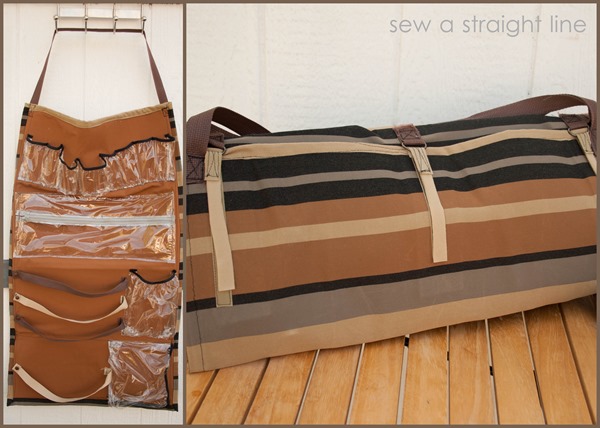

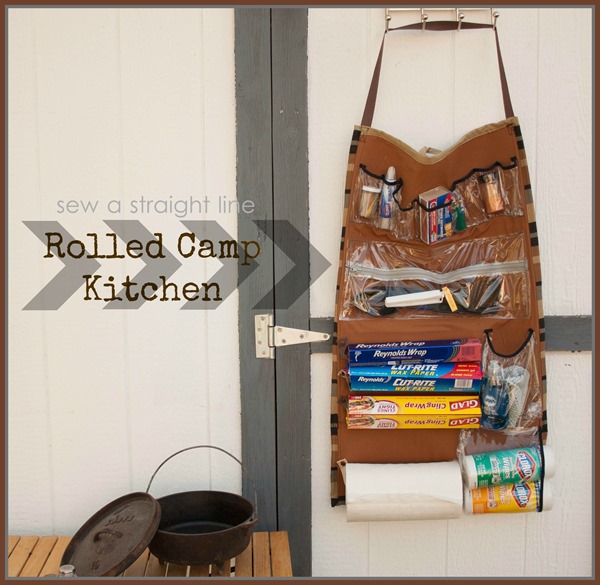

Made of outdoor canvas and vinyl, it’s sturdy and easy to clean.
  rolled camp kitchen1

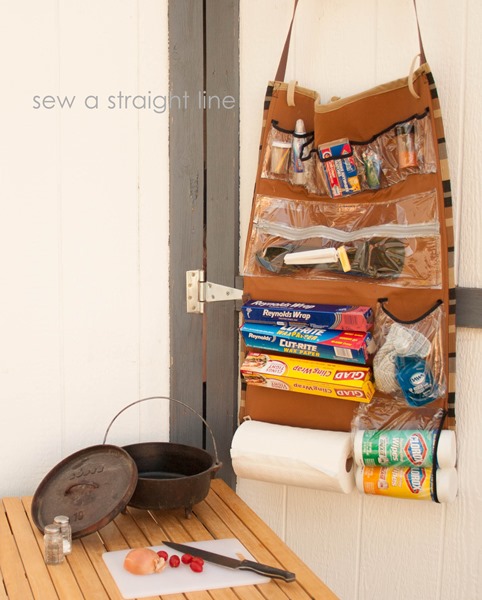

There are pockets and straps for holding everything from salt and pepper to dish soap and paper towels in place for the long haul.

rolled camp kitchen

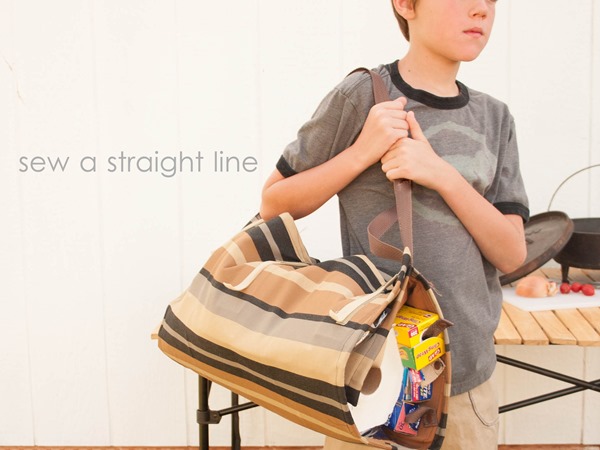

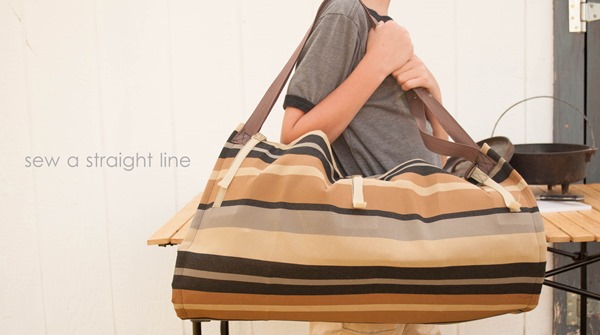

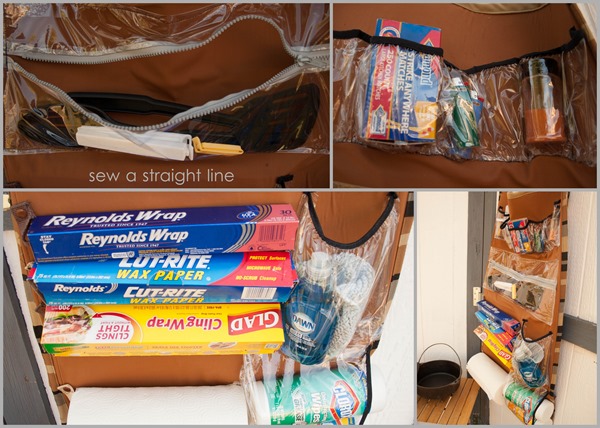

And the whole thing rolls up with all of its contents secure inside for storage and transporting.

rolled camp kitchen sew a straight line blog-11

I’m going to share with you how I made mine, but all of the components are completely customizable, so you can mix and match, and make your Rolled Camp Kitchen to best suit your outdoor culinary needs.

Click this picture to go to the full tutorial, or click "read more"
rolled camp kitchen sew a straight line blog-6

1.25 yard outdoor fabric for Outer Panel
1.25 yard outdoor fabric for Inner Panel
1 Yard 72 Pellon Peltex 72 (the heaviest interfacing you can buy at a regular fabric store)
1 Yard clear plastic vinyl, at least 54” width
2 yards fold-over elastic
3.5 yards polyester webbed belting, 1” width
3 1” metal D-rings
1 yard sew-on Velcro
4 heavy-duty complete snap sets
1 18” vinyl zipper
Heavy-duty or Jean needle
Walking foot or tissue paper

Cut your main body pieces:
Outer Panel: 24”x41”
Inner Panel: 22”x39”
4 Pellon panels: 20”x8.5”

Set Outer Panel aside for now.

Inner Panel

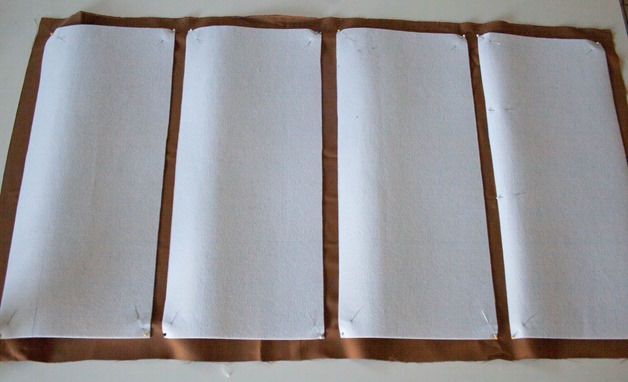

Pin the Pellon panels in place on the wrong side of the Inner Panel.  The pieces should be one inch from the outside edge, and about 3/4” from each other. I used a basting stitch after pining, so that I could remove the pins.  Iron the Pellon in place, following the manufacture directions.
rolled camp kitchen tutorial-1
Flip the Inner Panel to the right side.  From here on out, I will refer to the Inner Panel’s Pellon-enforced areas as Section 1, Section 2, Section 3, Section 4, working from top down.

Section 1: Spice Rack/Odds and Ends Pocket Strip

Cut a strip of vinyl 6”x54”

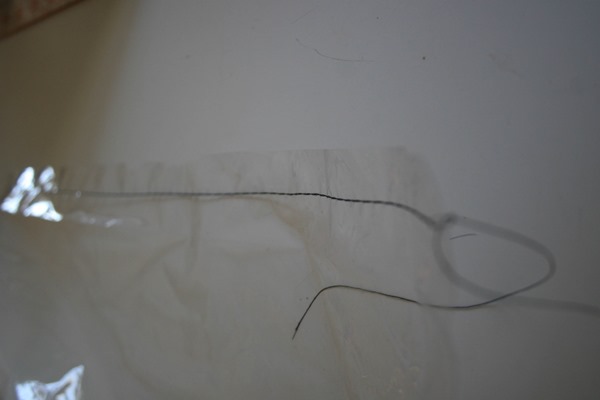

Sew a basting stitch the length of the vinyl strip.  If you do not have a walking foot, to help the vinyl move more smoothly under the foot of the machine, use tissue paper between the vinyl and the sewing machine foot.  After you are done sewing, you can simply tear the paper away.
rolled camp kitchen tutorial-21

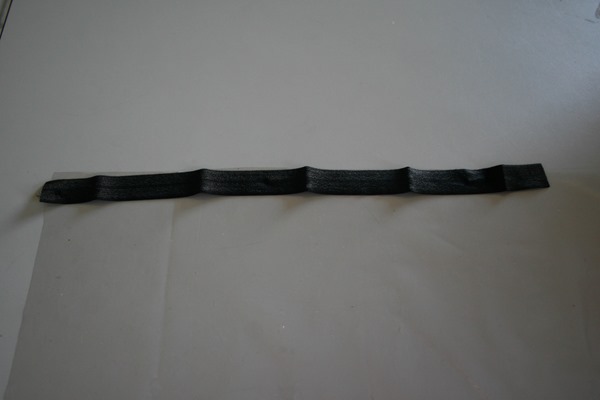

On the other long edge, sandwich the entire raw edge with the fold over elastic, stretching the elastic as you sew it in place with a zigzag stitch.

rolled camp kitchen tutorial-18

I chose not to use pins for this part, as I didn’t want holes in my vinyl.  I just worked slowly, holding the elastic with one hand, while stretching, as I sewed things down.

rolled camp kitchen tutorial-19

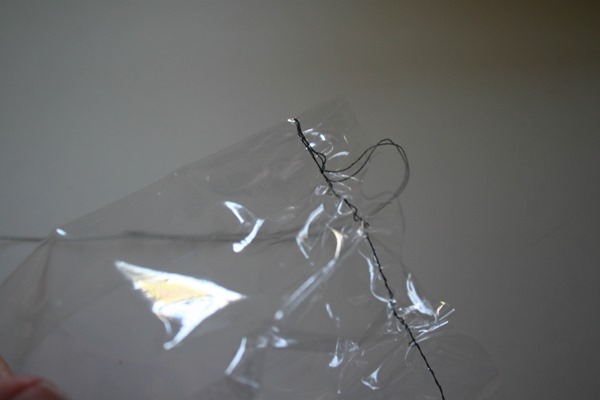

Now pull the one thread of your basting stitch, gathering the vinyl strip at the lower, long edge

rolled camp kitchen tutorial-23You want to gather it until it measures 20” long.

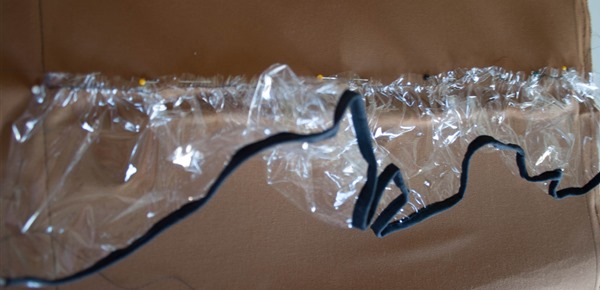

Staring one inch in, and ending one inch from the other edge of the Inner Panel, pin the gathered edge to the lower edge of Section 1 (feel for the Pellon as a guide for the lower edge), with the elastic edge hanging down onto Section 2.
 rolled camp kitchen tutorial-2

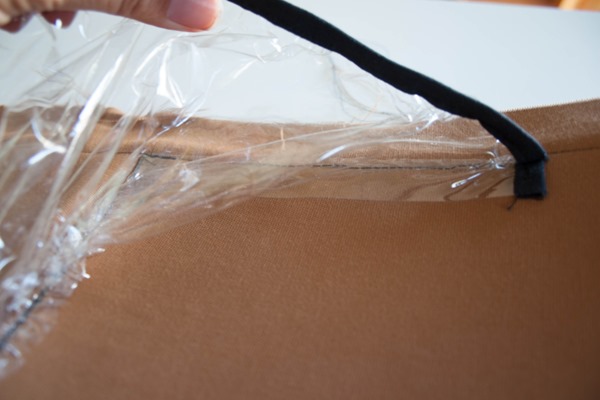

Sew across the gathers, the length of the vinyl.  Flip the vinyl up, so that the elastic edge now is on Section 1, and the sewn gathers are inside the foldrolled camp kitchen tutorial-5
Tuck the edges under and sew in place at either end

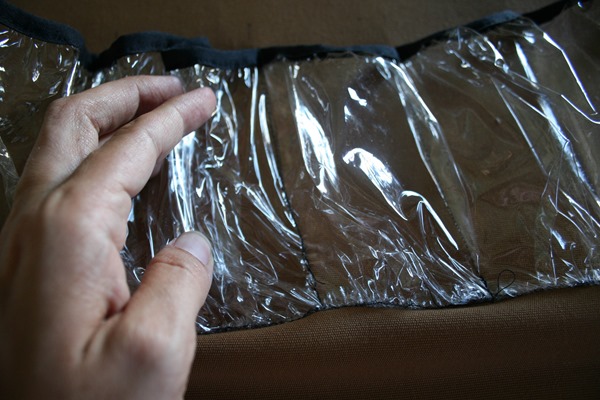

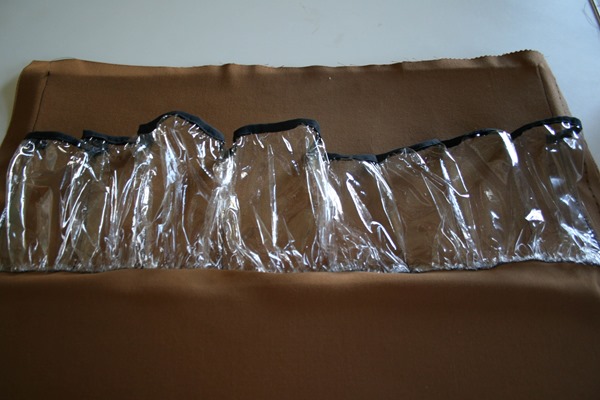

  rolled camp kitchen tutorial-4 Now you want to sew the vinyl straight down from elastic top to gathered bottom to make the pocket sections.  For spice bottles, you want 5.5 inches of vinyl for every 2 inches of Inner Panel.  I made a variety of sizes, to fit various odds and ends in addition to spice bottles.

rolled camp kitchen tutorial-6rolled camp kitchen tutorial-8
Section 2: Zippered Utensil Pocket
Cut one strip of vinyl 21”x6”
Cut one strip of vinyl 21”x4”

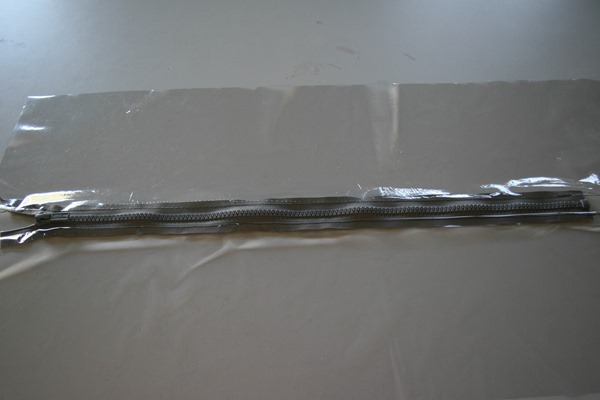

Sew the zipper to the vinyl strips

rolled camp kitchen tutorial-13

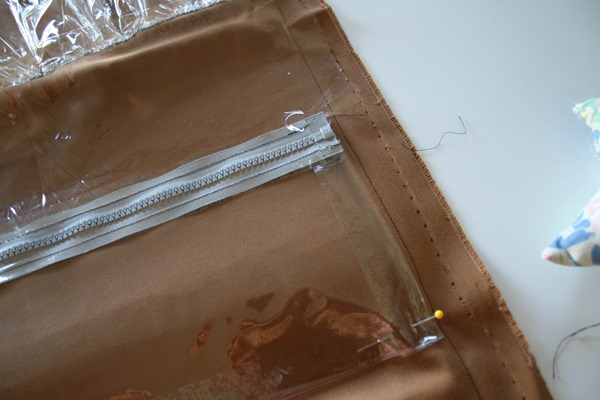

Fold the vinyl under .5” on all sides and pin to Section 2, centered.
  rolled camp kitchen tutorial-14 rolled camp kitchen tutorial-15

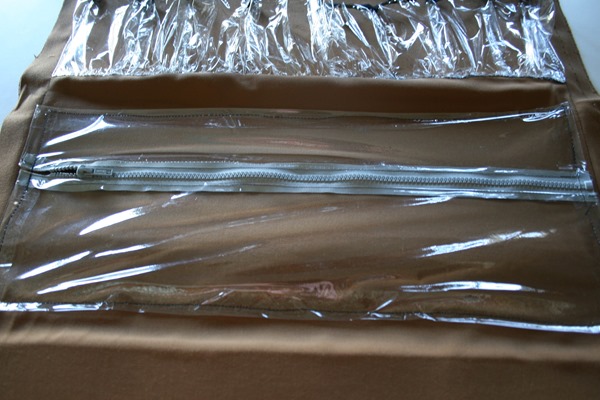

Sew in place all along outer edge
  rolled camp kitchen tutorial-17
Section 3: Aluminum Foil/Plastic Wrap Straps and Large Pocket
Cut vinyl piece 11.5”x16”

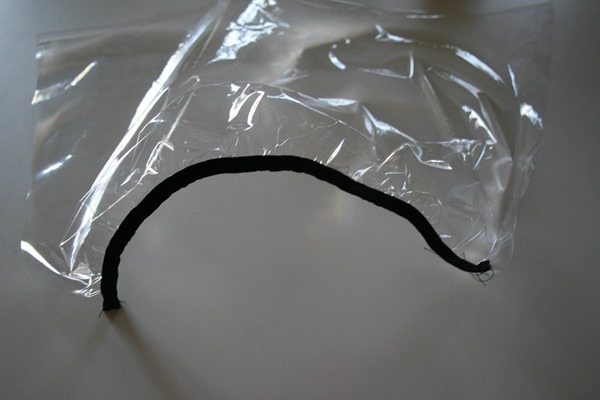

Follow same steps as for the Spice Rack on Section 1, attaching fold over elastic and gathering bottom.

rolled camp kitchen tutorial-20rolled camp kitchen tutorial-22
Following same directions as sewing the Spice Rack Pocket, sew Large Pocket to right side of Section 3.  Unlike Spice Rack Pocket, don’t sew divisions.  Unless you want to.  I just wanted a big, single pocket.

rolled camp kitchen tutorial-26

Cut (3) 17” strips of webbed belting
Sew one inch of the one end of each of the three beltings as close to the Large Pocket as you can, with the belting overlapping the pocket.  I used the plastic wrap box as my guide on how close to put the straps to each other.

rolled camp kitchen tutorial-29

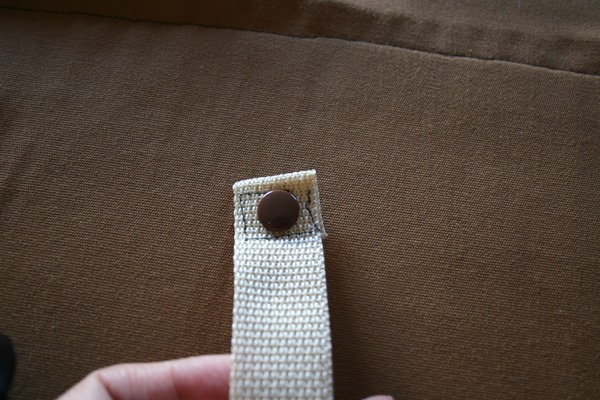

On the other end each strap, fold the ends under one inch and sew in place.  Install heavy-duty snap stud and cap to the folded end.

rolled camp kitchen tutorial-30

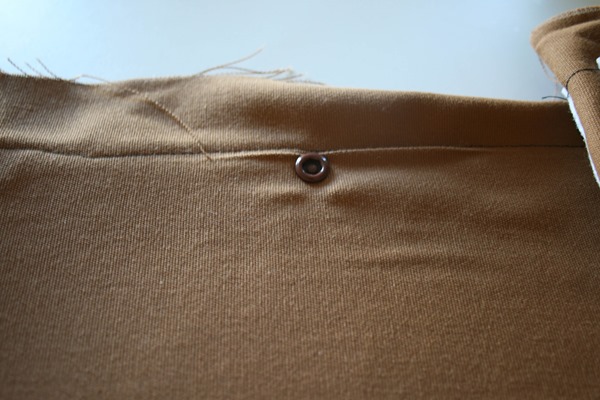

Directly across from the sewn-down ends of the strap, install heavy-duty snap sockets at edge of Section 3

rolled camp kitchen tutorial-28

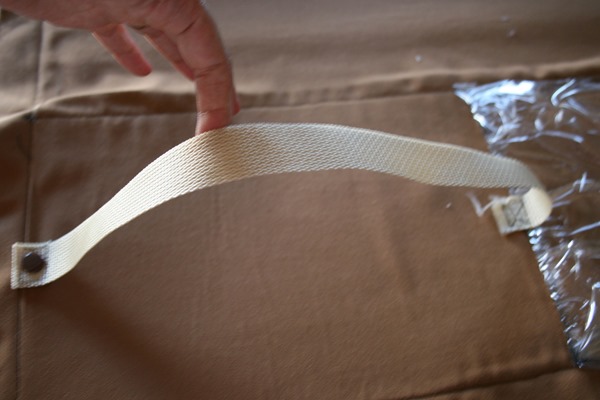

You should now have three straps that look like this

   rolled camp kitchen tutorial-31

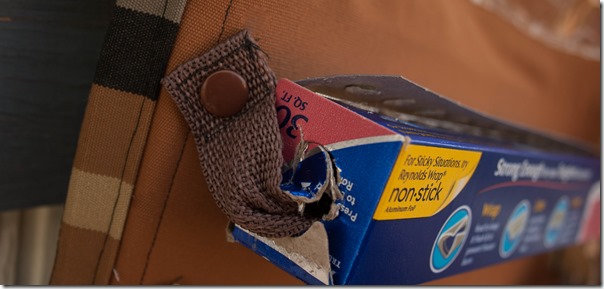

The straps will slide right through the holes and inner tubes of aluminum foil and plastic wrap boxes.  Most have holes on the sides already, but you can cut slits/holes if needed.

rolled camp kitchen sew a straight line blog-14

Section 4: Paper Towel Holder and Large Pocket
Cut 11.5x16” vinyl
Cut 17” strip of webbed belting

Repeat steps for Section 3, only with one strap centered.  I chose to put my pocket on horizontally for Section 4, so it could accommodate Clorox Wipes.  The Wipes container is too tall to fit vertically.  You can do either a vertical or horizontal pocket, depending on what you want to place in the pocket.

Outer Panel

Cut 3 pieces of Pellon 2” square, and 3 pieces  2”x6”

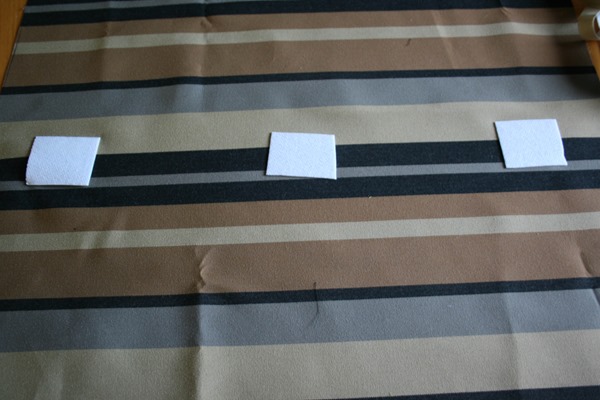

Iron the 2” square pieces to the wrong side of the Outer Panel at 11.5” from bottom edge of Outer Panel, and centered at 2”, 12” and 21” from left edge of Outer Panel

rolled camp kitchen tutorial-32

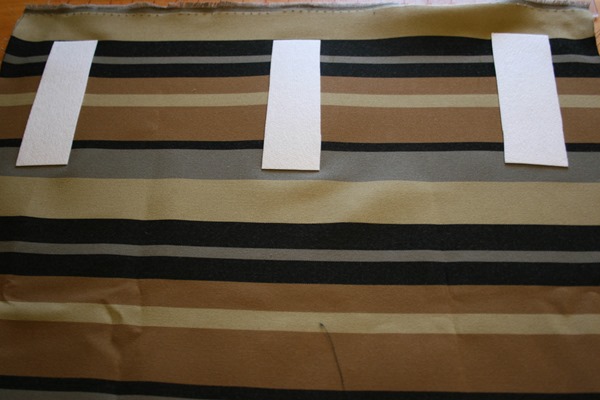

Iron the 6” Pellon at 3” from top, and the same distances from left edge of Outer Panel, also on the wrong side of the fabric

rolled camp kitchen tutorial-36

Cut(3) 5” strips of webbed belting
Thread each strip through a D-ring, and line up raw edges.

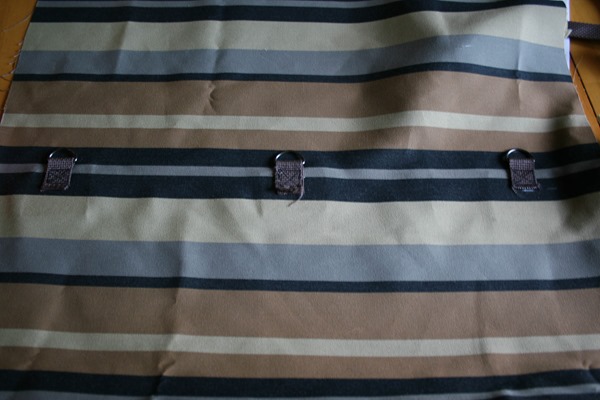

On the right side of the Outer Panel, sew the belted D-rings down at the same measurements as the 2” square Pellon.

rolled camp kitchen tutorial-33
Cut (3) 6” strips of loop Velcro
Cut (3) 8” strips of hooked Velcro

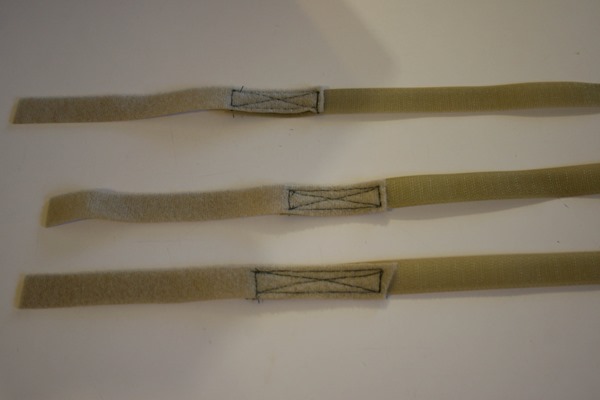

With both the hooks and the loops facing up, overlap the hooked (hard) Velcro onto the loop (soft) Velcro two inches.
Sew the two inch overlap down with a cross-box pattern
  rolled camp kitchen tutorial-37
On the right side of the Outer Panel, sew the Velcro strips at the same measurements as the 6” Pellon on the wrong side.  Sew the hooked down, leaving the overlapped and looped Velcro area unsewn.

rolled camp kitchen tutorial-40
Fold the loops onto the hooks to keep the Velcro strips out of the way for the next, finishing steps

rolled camp kitchen tutorial-41


Lay the Inner Panel on the Outer Panel, wrong sides together, with a 1” “border” of Outer Panel all around all edges of Inner Panel.
Pin in place

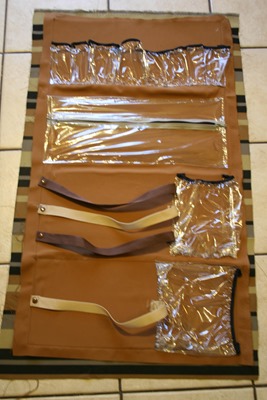

Baste 1/4 inch from the Inner Panel along all edges

rolled camp kitchen tutorial-42

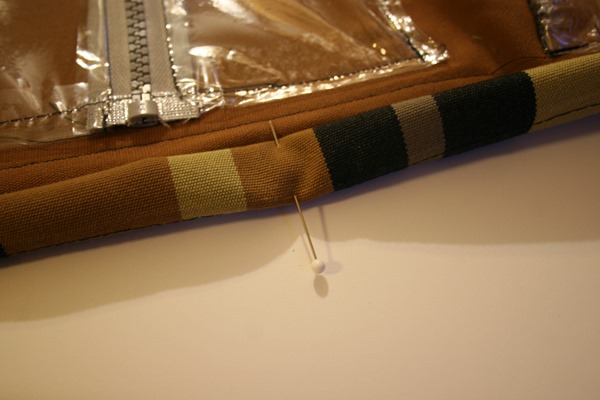

Fold the Outer Panel overlap in 1/2 inch, then another 1/2 inch onto the Inner Panel.  Press and Pin.  Sew 1/4” in from inside edge of Outer Panel binding

rolled camp kitchen tutorial-45
Cut (2) 30” strips of webbed belting

Sew one strip down at both ends on either side of the outer-most D-rings, as pictured:

rolled camp kitchen tutorial-49

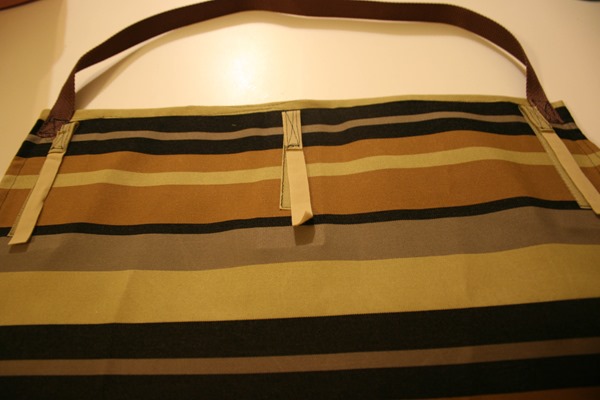

Sew the other strap at either side of the outer-most Velcro strips, as pictured:

rolled camp kitchen tutorial-50
Now stock your Rolled Camp Kitchen with all your sundry camp cooking needs
rolled camp kitchen sew a straight line blog-1
And you’re good to go!

rolled camp kitchen sew a straight line blog-10
